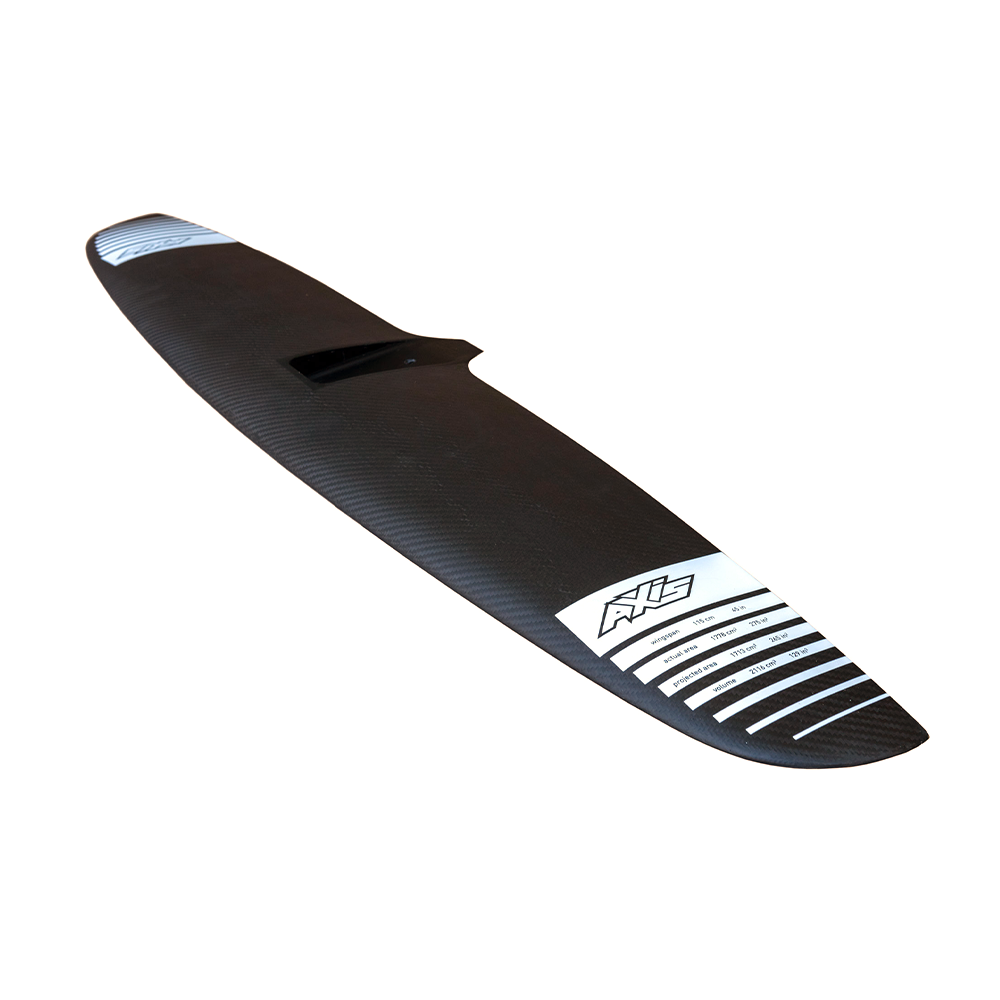

The AXIS S-Series 1150mm Carbon Front wing is the biggest of our newest generation of high aspect wings, focusing on longest and most efficient gliding and pumping.

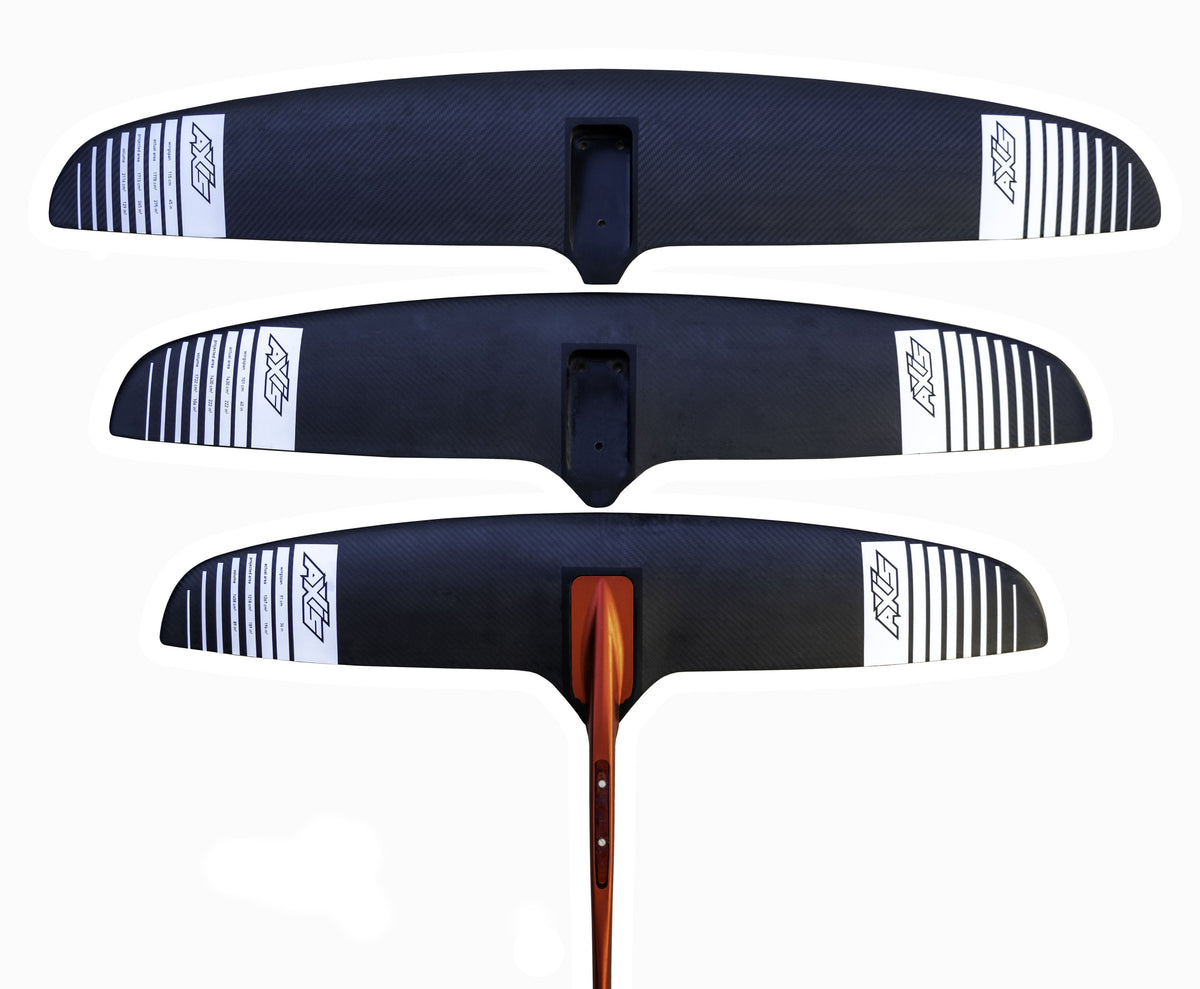

The AXIS 1150, together with the AXIS 1010 and the AXIS 910 form our "Glide Series" wing family.
The "Glide Series" wings are designed to be easy and early to lift for their size. The have tons of control, and feel comfortable for most levels of riding. Our Glide wings pump unreal, and glide effortlessly and endlessly. And they are fast wings, but their focus is not to be the fastest wing on the market. But instead, to be the easiest high aspect wing that almost everyone can ride, and can improve their level of riding right away.
The 1150 is the biggest wing of the Glide collection. It's in fact the longest wingspan wing we have ever made! We wanted a wing that will lift very very early, and would glide endlessly, w/out slowing down.
The AXIS S-Series 1150 wing was designed to dominate the smallest foiling conditions. From light wind WING Surfing, to tiny bumps SUP and SURF foiling, to effortless lift behind the BOAT, and DOCK starts and PUMPING, the AXIS 1150 performs like no other high aspect wing ever dreamed of. The amount of glide and pumping ability of the AXIS 1150 is tremendous. And probably this is why our testers nominated the AXIS 1150 as the WING SURFING wing.
The AXIS S-Series 1150 carbon wing connects to the S-Series fuselages with 3 x M8, 20mm screws. At 1150mm wingspan the AXIS 1150 is a massive wing, nearly twice as stiff as the 1010, benefiting from the AXIS S-Series rigidity and stiffness of engineering and construction.

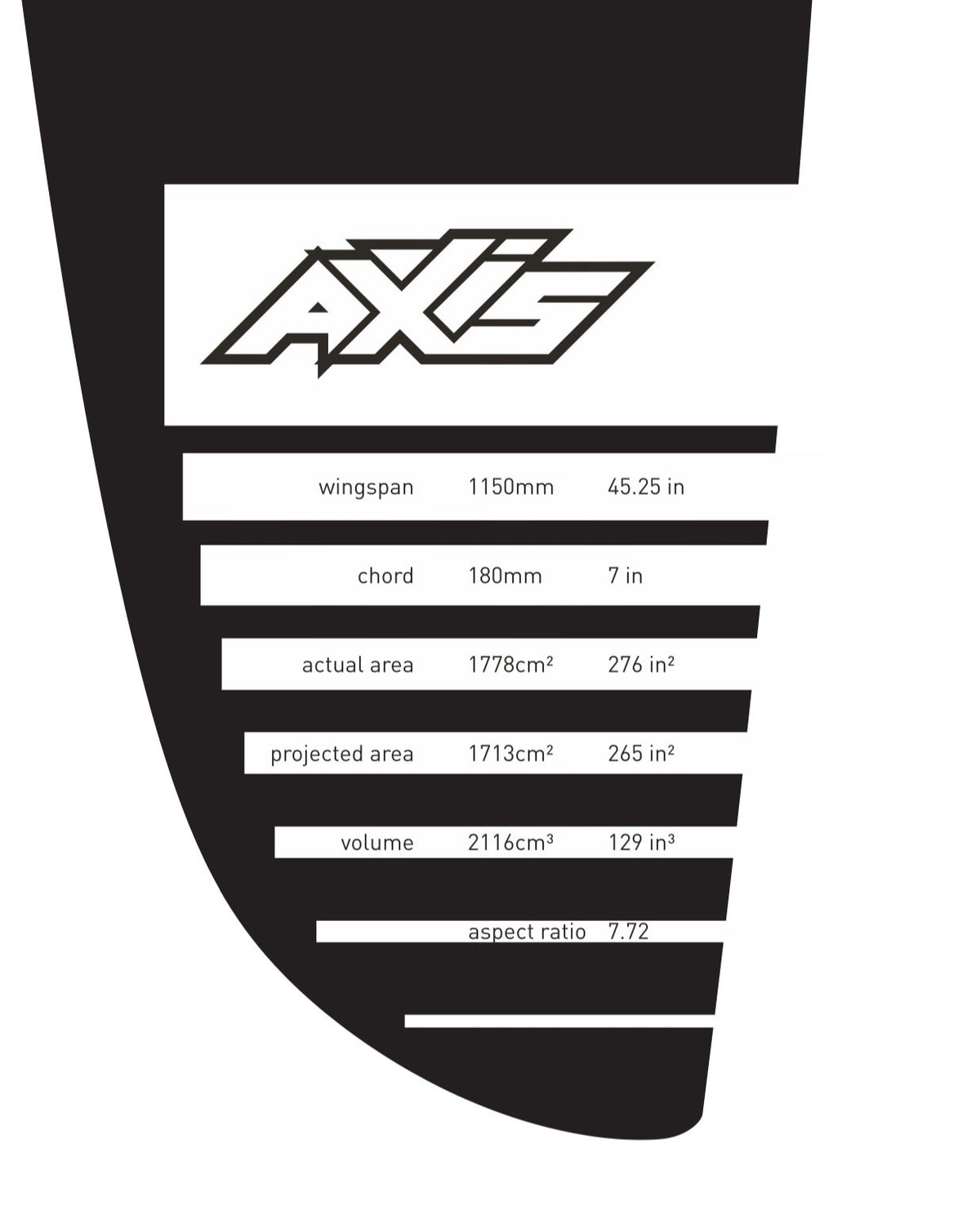

As with every AXIS front wing, the graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.
1150mm Carbon Wing
Technical Data:
WINGSPAN: 1150 mm / 45.25 inches
MAX CHORD: 180mm
ASPECT RATIO: 7.72
ACTUAL AREA 1778 square cm / 276 square inches
PROJECTED AREA: 1713 square cm / 265 square inches
VOLUME: 2116 cubic cm / 129 cubic inches
Recommended use:
WING Surfing for all levels and light / medium conditions
Downwinding - Lighter wind / smaller waves
SUP / Surf - Tiny bumps and endless gliding
Wake foiling - Early lift / easiest pump
Pump Foiling - Endless
Windsurf foiling - early and super easy lift
Suggested Rear Wing:
S-Series 460 Carbon for max speed
S-Series 440 Carbon for control and stability (all levels)
S-Series 400 Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
S-Series 390 Carbon for Wing Surfing with good turning control and additional glide
S-Series 370 Carbon for loose feel and even faster turning, with less stability (intermediate / advanced)
S-Series 340 Carbon for even looser feel and even less drag and more speed. (advanced)
When you purchase the AXIS S-Series 1150mm carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.
